PROJECTS

The Motorway Alignment, Roadside Facilities, Interchanges, Drainage,

Traffic Surveys & Traffic Signing and Road Marking Design,

Safety Equipment, Electrification and Lighting,  Landscape Design. The Final Bill of Quantities , Unit Price Descriptions and Technical Specifications.

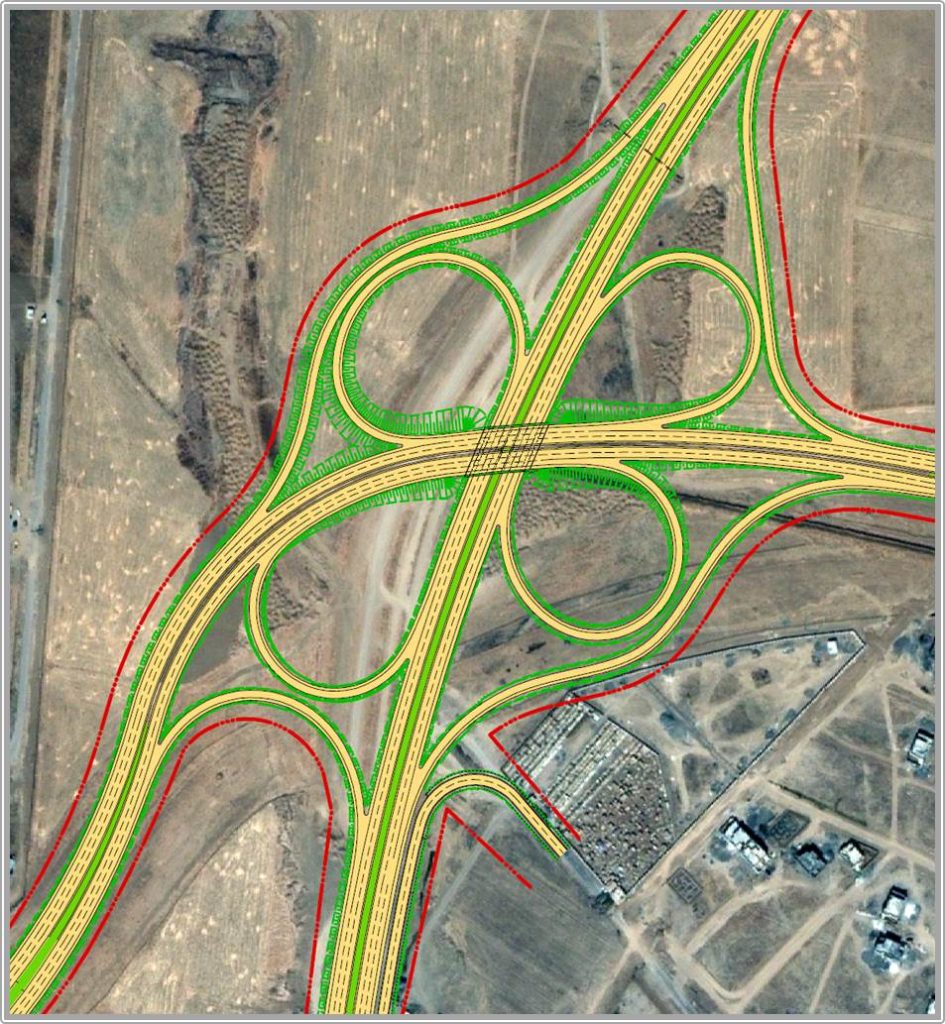

• 22 Interchanges

• 102 Km. Motorway

• 25 km. Link Road

• 37 Viaduct

• 2 Motorway Tunnels

• 2 Railway Tunnels

• 2  Toll Plazas

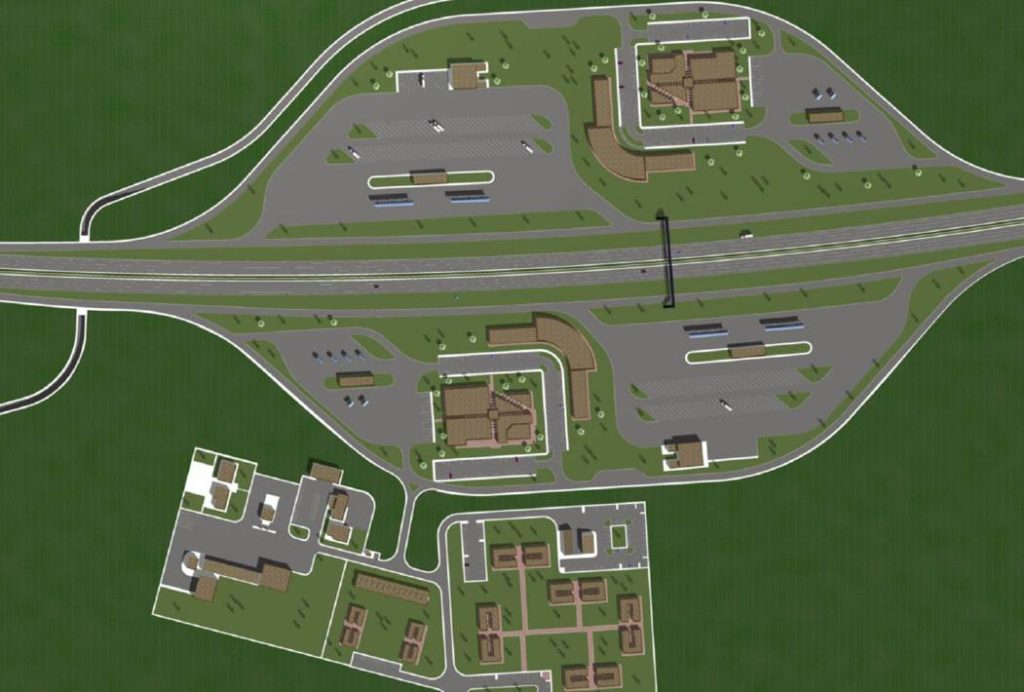

• 5 Parking Areas

• 2 Maintenance Centers

The KORA – SHAQLAWA – QANDEEL HIGHWAY forms one link planned to facilitate efficient road travel across Erbil to Iran Border. In order to maximize the expected benefits to users a consistently high design standard should apply throughout the route. The rote has been designed in three lots.The Kora-Shaqlawa Section is 9.2 km, Shaqlawa-Harir Junction Section is 13.3 km, and Harir Junction-Qandeel is 28.1 km long.

• Topographic Strip Mapping
• The Geotechnical Study inc. Borehole Drilling and Trial Pits
• The Highway Alignment
• Tunnel
• Interchanges
• Structural
• Drainage
• Traffic Signing and Marking
• Safety Equipment
• Electrification and Lighting. The Final Bill of Quantities
• Unit Price Descriptions and Technical Specifications
• 3 Interchanges
• 9 Intersections
• 2 Tunnel (2×2 Twin tube)
• 2 Viaduct (2775 m.)
• 8 River Bridge (838 m.)
• 4 Overpass (1370 m.)
• 3 Underpass (431 m.)
• 84 Box-Culvert

The project includes the Engineering & Design Works of 38.5 km (2×2) Highway Rehabilitation and Widening works. The Client attended for using the World Bank Fund saved for rehabilitation of this route, which has importance of connecting Erbil to Kirkuk. We carried out the both design and contract management works on behalf of the Client, and arranged meetings in Istanbul with the Client and World Bank authorities.

• 34.180 km. 2×1 highway
• 4.425 km. 2×2 highway
• 1 Bridge (L=24 m.)
• 44 Box Culvert (886m.)
• 39 Pipe Culvert (1952m.)
• Collector pipe (474 m.)
• Guardrail (12072 m.)
• Traffic Sign (32628 m2)

The project includes the Engineering & Design Works of 8.83 km highway including 2 interchanges and 2450 m. Tunnel.

• Topographic Strip Mapping
• The Geotechnical Study inc. Borehole Drilling and Trial Pits
• The Highway Alignment Tunnel
• Interchanges
• Structural
• Drainage
• Traffic Signing and Marking
• Safety Equipment
• Electrification and Lighting. The Final Bill of Quantities
• Unit Price Descriptions and Technical Specifications

The project includes the Engineering & Design Works of two interchanges and arterial road in erbil City.  Koya Street Road is designed as a 2×2 divided highway with improved capacity and physical standards to serve for the increasing traffic demand.

• Detail Topographic Strip Mapping=29 ha.
• Geotechnical Study incl. Borehole Drilling Trial Pits
• Highway Alignment Design= 3.400 km.
• 2 Interchanges
• 1 Viaduct
• 4 Underpass Bridges
• Structural Design= 6537 m2
• Drainage Design
• Traffic Surveys & Traffic Signing and Road Marking Design
• Landscape Design
• Conceptual Lighting Design
• Preperation of Bill of Quantities and Technical Specifications

The project includes the Engineering & Design Works of 4.9 km. of (2×2) highway. The highway corridor runs in a northeast-west direction from Erbil to Mosul.

Erbil and Mosul are the two important cities. They are highly crowded. Traffic on the road between two cities is so high.  These roads run to Kirkuk as well. The government institutions, towns and farm lands will also appreciably benefit from this road.

• Detail Topographic Strip Mapping=130 ha.
• Geotechnical Study incl. Borehole Drilling Trial Pits
• Highway Alignment Design= 4.900 km.
• 2 Interchanges
• 1 Overpass Bridge
• 3 Underpass Bridges
• Structural Design= 3805 m2
• Drainage Design Traffic Surveys & Traffic Signing and Road Marking Design
• Landscape Design
• Conceptual Lighting Design
• Preperation of Bill of Quantities and Technical Specifications

• Revision of Shop Drawings
• Preparation of As-Built
• Cross-Section Drawings

• Interchange Alternatives

• Bridge Pier Alternatives

The project includes the Engineering & Design Works of 42 km highway including 3 interchanges, 8 intersections, 1 underpass, 5 river bridges, 46 culverts, concrete walls and anchoraged slope stabilization works.

• Topographic Strip Mapping
• The Geotechnical Study inc. Borehole Drilling and Trial Pits
• The Highway Alignment
• Interchanges
• Structural
• Drainage
• Traffic Signing and Marking
• Safety Equipment
• Electrification and Lighting. The Final Bill of Quantities
• Unit Price Descriptions and Technical Specifications

• Preliminary Design Works
• 31 Km
• 12 Interchanges
• 8 Intersections

• Preliminary Design Works
• Three Alternative Projects
• 30 Km
•  Interchanges
• 4Intersections
